For Honda B18A B18B B20B B20Z Head Cam Cap Cover Bolt Hardware Set

$29.95
For Honda B18A B18B B20B B20Z Head Cam Cap Cover Bolt Hardware Set

Replacement Camshaft Cover Hardware Bolt Set (Cam Cap). New complete set, all 28 pieces.


Ships Priority, same day or next day if order received past the cut off time.

The original Honda cam cap cover bolts are a known weakness after repeated use, often stretching or breaking off in the head. These replacement bolts are a high quality alternative that improve upon the weaknesses of the OEM bolts through a slightly larger diameter shaft and head clamping surface area.


We are fellow enthusiasts and trust these bolts on our high revving motors, including my personal vehicles.


Works for all P75 and P8R head castings (DOHC non-VTEC B-series):

Fits common US and Japanese non-VTEC motors: B18A, B18B, B20B, B20B2, B20B4, B20Z, B20Z2 from chassis: Acura Integra RS/LS/GS/SE 1990-2001, Honda CR-V 1st Generation 1997-2001


Does not fit: B16A, B16A1, B16A2, B16A3, B18C, B18C1, B18C5, B18C6 DOHC VTEC heads. See our other auction for the cam bolt kit for the DOHC VTEC Heads for Acura Integra GSR 1992-2001, Acura Integra Type R 1997-1998 2000-2001, Honda del Sol VTEC 1994-1997, Honda Civic Si 1999-2000

This hardware kit includes OEM equivalent JIS 10.9 grade standard as noted below. There is a no questions asked quality policy, if a bolt fails on you, simply send me a photo of the failure, proof that you used a torque wrench, and I’ll send a replacement free of charge.

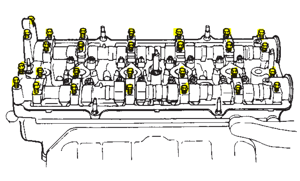

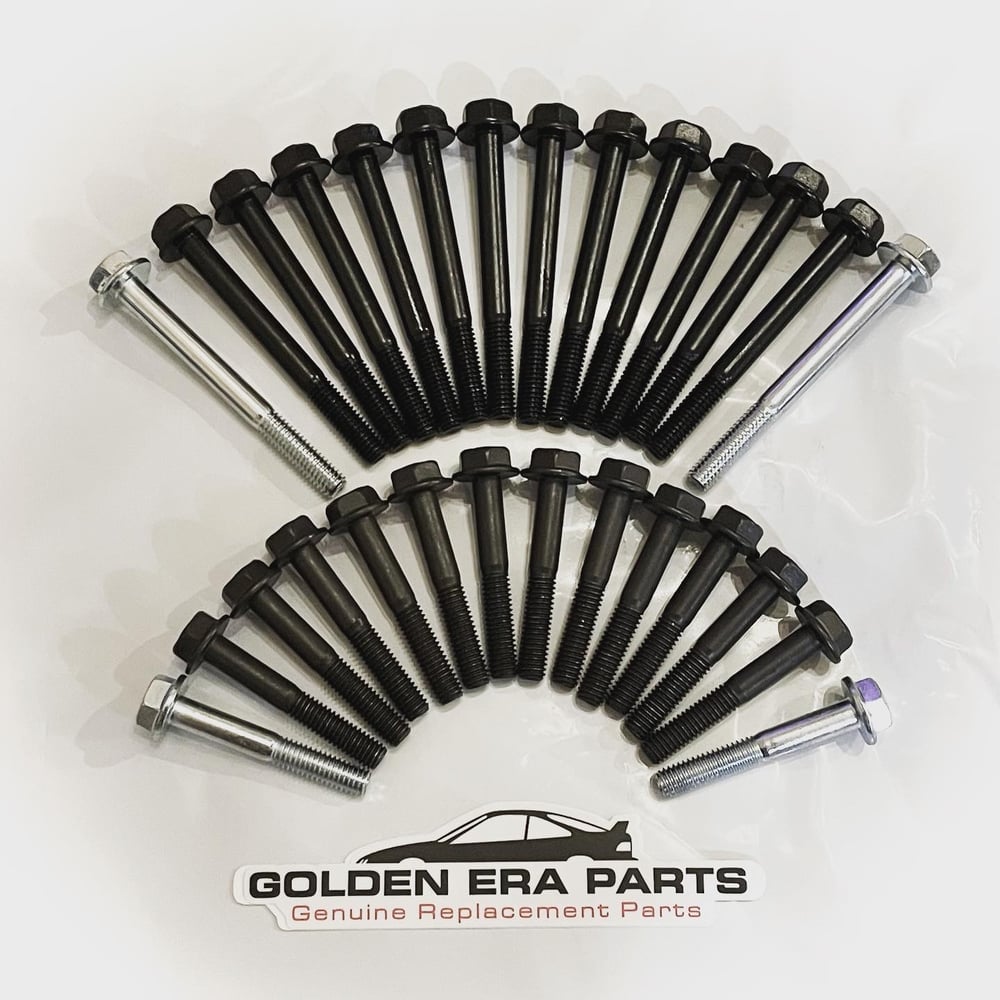

Includes all of the following


Bolts under the cover:


• 12x 10mm long cam cap inner bolts, caps 1 to 6. These will be either zinc coated or black (like OEM), grade 10.9 JIS standard


• 12x 10mm short cam cap outer bolts, caps 1 to 6. These will be either zinc coated or black (like OEM), grade 10.9 JIS standard

Exposed bolts:

• 2x 10mm long cap #6 distributor end intake bolts, guaranteed high finish zinc coated, grade 10.9 JIS standard

• 2x 10mm short cap #6 distributor end exhaust bolts, guaranteed high finish zinc coated, grade 10.9 JIS standard

Bolts come individually packaged by type for quality control.
